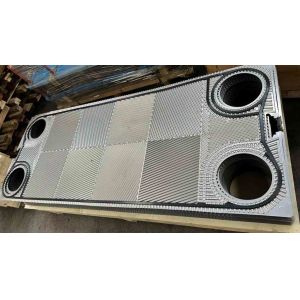

Heat Exchanger Plates
Hastelloy, Stainless Steel 304/316, Titanium Replace Plate For Vicarb V45/V60/V85/V100/V130/V170
A heat exchanger plate, also known as a plate heat exchanger, is a type of heat exchanger that consists of multiple thin, corrugated plates arranged in a frame. These plates are usually made from materials like stainless steel, titanium, or nickel alloys due to their excellent thermal conductivity and resistance to corrosion.
The design of heat exchanger plates allows for efficient heat transfer between two fluids while keeping them separate to prevent mixing. The corrugated pattern on the plates creates turbulence in the flow of fluids, enhancing heat transfer efficiency.
Titanium is commonly used as a material for heat exchanger plates due to its excellent corrosion resistance, high strength-to-weight ratio, and good thermal conductivity. These properties make titanium a suitable choice for applications where the heat exchanger will be exposed to corrosive environments or where weight is a concern. Titanium heat exchanger plates are often used in industries such as chemical processing, marine, and aerospace.
Titanium plates in Plate Heat Exchangers (PHE) are commonly used in applications where corrosion resistance, high strength-to-weight ratio, and good thermal conductivity are important factors. Titanium is suitable for use in industries such as chemical processing, marine, aerospace, and other applications where the heat exchanger will be exposed to corrosive environments or where weight is a concern.
One of the key advantages of heat exchanger plates is their compact size compared to traditional shell-and-tube heat exchangers, making them ideal for applications where space is limited. They are also known for their versatility and can be used in various industries such as HVAC, chemical processing, food and beverage, and power generation.
Maintenance of heat exchanger plates is relatively easy as the plates can be removed for cleaning or replacement without disassembling the entire unit. However, they may be susceptible to fouling, which can reduce efficiency over time.
Overall, heat exchanger plates are valued for their efficiency, compact design, versatility, and ease of maintenance, making them a popular choice for a wide range of industrial and commercial applications.
| Brand | Model |
| Vicarb | V4,V8,VU8,V13,V20,V28,V45,V60 |
| Material | Specification |
| Stainless Steel | SUS304 316 316L 310S 904 |
| Titanium and titanium-palladium alloy | TAi TAi-Pd |
| Hastelloy | C276 D205 B2G |
| Nickel | Ni200 Ni201 |
| Molybdenum | 254 |
Heat Exchanger Plates material
1. Stainless steel SUS304 SUS316L
Purified water, river water, food oil, mineral oil
2. Industrial pure titanium and titanium-palladium alloyTi tanium and Pal ladium
Sea water, salt water, salt compounds
3. Hastelloy Alloy
Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
4. Nickel
High temperature and high concentration caustic soda
Q&A
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer of plate heat exchangers, plates, gaskets, plate mould with 18 years' experience.
Q: Can I customize samples of heat exchanger plates?
A: Yes,we welcome sample order to test and check quality.
